OUR CLEAREST SONAR EVER

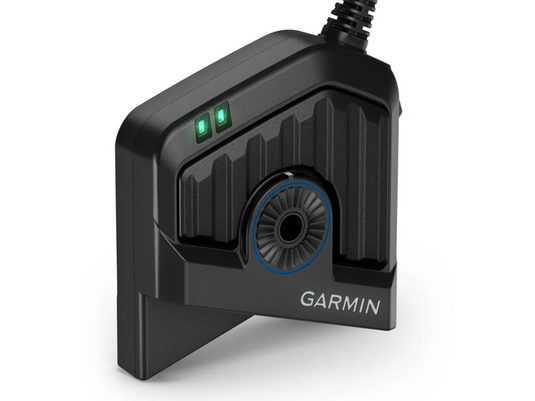

See fish and lures in real time in high definition like never before with LiveScope 2 HD sonar. With ultra-high resolution, integrated image stabilization and improved stitching, your images are cleaner and crisper.
ULTRA HIGH-DEFINITION IMAGERY WITH BETTER TARGET SEPARATION
NO BLACK BOX NEEDED, SO INSTALL IS EASY
SEE HIGHLY DETAILED IMAGERY AT CASTABLE RANGE AND BOTTOM TRACK OUT TO 125 FEET
SONAR AUTOMATICALLY TURNS OFF WHEN THE TRANSDUCER IS OUT OF THE WATER
WIDER ANGLES IN FORWARD, DOWN AND PERSPECTIVE MODES
General |
|
| Transducer beamwidth | Forward: 20° x 165° Down, Perspective: 20° x 180° |
|---|---|
| Transducer cable length | 5.5 m (18 ft) |
| Transducer number of pins | 7 |
| Dimension | 5.2” x 5.3” x 1.9” (13.3 x 13.4 x 4.8 cm) |
| Weight |
3.62 lbs (1.646 kg) |
| Temperature range | Operating: 0 C to 40 C |
Electrical Features |
|
| Power Input | 10-35 V |
|---|---|
| Power usage | 32 W max |
| Fuse | 7.5 A |
| Compass safe distance | 4" |
Sonar Features |
|
| Frequency | 850 kHz-1600 kHz |
|---|---|
| Transmit power | 521 W |
| Maximum depth | Down and Forward: 125’ |
| Sonar type | Live |
| Target separation @ 100 ft | 12.6" |
| Target separation @ 30 ft | 3.8" |
| Perspective mode mount included | yes (adjustable angles) |
| Water detection transmit control | |
Networking & Connections |
|
| Garmin Marine Network Ports |
1 BlueNet (small connector) with GMN1 Adapter |
|---|---|
| Power connection |
yes (2-wire) |
